Lower and Upper Bound Solutions for Bearing Capacity

Although today we have finite element methods which can combine elastic and plastic components of soil response to loading, the use of lower and upper bound plasticity is important in enhancing our understanding of plasticity in soils and many of the methods we use in geotechnical design. This is an overview of both lower and upper bound solutions to the classic bearing capacity problem. Much of this presentation is drawn from Tsytovich (1976) but the equations have been re-derived and checked.

Definitions (from Verruijt)

  1. Lower bound theorem.The true failure load is larger than the load corresponding to an equilibrium system.
  1. Upper bound theorem.The true failure load is smaller than the load corresponding to a mechanism, if that load is determined using the virtual work principle.

For our purposes, since we’re assuming an elastic/perfectly plastic type of soil model, the lower bound solution is where the stress at some point reaches the elastic limit, while the upper bound solution has the stress fully plastic to the boundaries of the system, at which point the capacity of the system to resist further stress has been exhausted (reached its upper limit.)


  • Foundation is very rigid relative to the soil (for upper bound) and flexible relative to soil (lower bound.) With the latter, a rigid foundation produces infinite stresses at the edges, which means the lower bound solution is zero pressure in that case.
  • No sliding occurs between foundation and soil (rough foundation)
  • Applied load is compressive and applied vertically to the centroid of the foundation (upper bound) or uniformly (lower bound)
  • No applied moments present
  • Foundation is a strip footing (infinite length)
  • Soil beneath foundation is homogeneous semi-infinite mass. For the derivations here, we additionally assume that the properties of the soil above the base of the foundation are the same as those below it
  • Mohr-Coulomb model for soil
  • General shear failure mode is the governing mode
  • No soil consolidation occurs
  • Soil above bottom of foundation has no shear strength; is only a surcharge load against the overturning load
  • The effective stress of the soil weight acts in a hydrostatic fashion, i.e., the horizontal stresses are the same as the vertical ones.

These are fairly standard assumptions for basic bearing capacity theory; the “additions” from these are workarounds that have been developed. That includes the analysis of finite foundations (squares, rectangles, circles, etc.)

Theory of Elasticity of Infinite Strip Footings

Let us begin by considering the system below of a strip footing with a uniform load. The variables are defined in the figure.

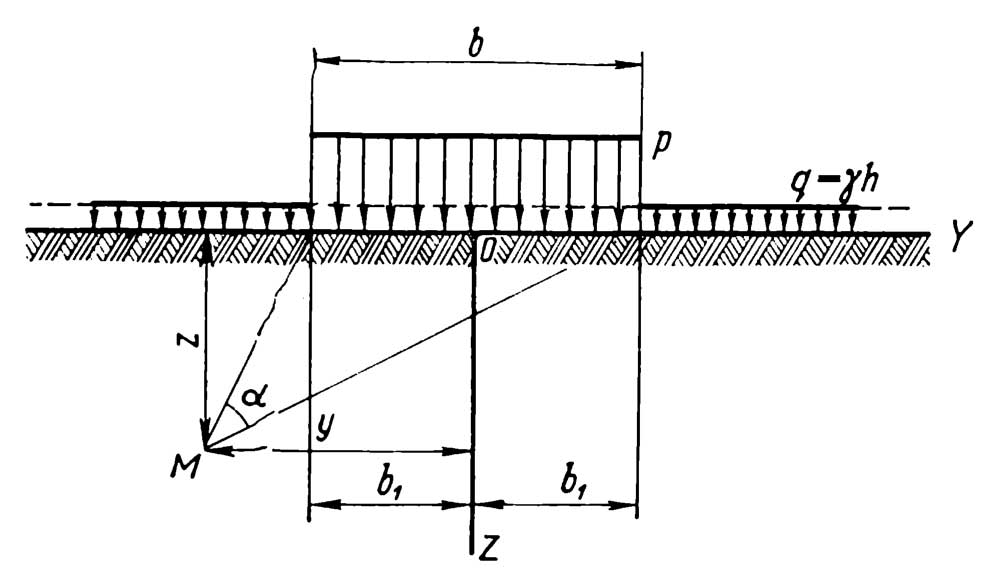

Figure 1 Elastic Model of Stresses of Strip Loads (adapted from Tsytovich (1976))

It can be shown that the stresses at a point of interest can be defined as follows:

\sigma_{{z}}={\frac {p\left (\alpha+\sin(\alpha)\cos(2\,\beta)\right )}{\pi }} (1)
\sigma_{{y}}={\frac {p\left (\alpha-\sin(\alpha)\cos(2\,\beta)\right )}{\pi }} (2)
\tau={\frac {p\sin(\alpha)\sin(2\,\beta)}{\pi }} (3)

It can also be shown that the principal axis of the stresses at the point are along a line in the middle of the angle \alpha . This is the dashed line in the diagram above. Along this line the angle \beta = 0 (and thus \frac{\alpha}{2}=-\beta' ) and the principal stresses due to the load become

\sigma_{{1}}={\frac {p\left (\alpha+\sin(\alpha)\right )}{\pi }} (4)
\sigma_{{3}}=-{\frac {p\left (-\alpha+\sin(\alpha)\right )}{\pi }} (5)

Lower Bound Solution

Shallow foundations are seldom built with the base of the foundation at the same elevation as the groundline. They are customarily built to a depth from the surface, as shown below.

Figure 2 Geometry and Nomenclature of a Typical Shallow Foundation (from Soils and Foundations Manual)

At this point, for analysis purposes, we transform the effect of the depth into an overburden stress, which is the product of the the unit weight of the soil \gamma and the depth of the foundation base from the surface D (or h,) as shown below:

Figure 3 Strip Foundation with Surrounding Overburden (from Tsytovich (1976))

The effective stress at any point below the surface is given by the equation

\sigma_{{0}}={\it \gamma}\,\left (h+z\right ) (6)

At the point the hydrostatic stress assumption becomes important. The transformation from Equations (1-3) to (4-5) involved an axis rotation. Assuming the soil acts hydrostatically means that, no matter how we rotate the axis, the addition of the effective stress to the principal stress is independent of direction.

Doing just that yields the following:

\sigma_{{1}}={\frac {\left (p-{\it \gamma}\,h\right )\left (\alpha+\sin(\alpha)\right )}{\pi }}+{\it \gamma}\,\left (h+z\right ) (7)
\sigma_{{3}}={\frac {\left (p-{\it \gamma}\,h\right )\left (\alpha-\sin(\alpha)\right )}{\pi }}+{\it \gamma}\,\left (h+z\right ) (8)

At this point we state the failure function for Mohr-Coulomb theory:

\sigma_{{1}}-\sigma_{{3}}-2\,c\cos(\phi)-\left (\sigma_{{1}}+\sigma_{{3}}\right )\sin(\phi)=0 (9)

Substituting Equations (7) and (8) into Equation (9) yields

-2\,{\frac {-p\sin(\alpha)+{\it \gamma}\,h\sin(\alpha)+c\cos(\phi)\pi+\sin(\phi)p\alpha-\sin(\phi){\it \gamma}\,h\alpha+\sin(\phi){\it \gamma}\,\pi \,h+\sin(\phi){\it \gamma}\,\pi \,z}{\pi }}=0 (10)

Solving for z, we have

z={\frac {p\sin(\alpha)}{\sin(\phi){\it \gamma}\,\pi }}-{\frac {h\sin(\alpha)}{\sin(\phi)\pi }}-{\frac {c\cos(\phi)}{\sin(\phi){\it \gamma}}}-{\frac {p\alpha}{{\it \gamma}\,\pi }}+{\frac {h\alpha}{\pi }}-h (11)

At this point we want to find the maximum value of z at which point plasticity first sets in. We do this by taking the derivative of z relative to \alpha and setting it to zero, or

{\frac {p\cos(\alpha)}{\sin(\phi){\it \gamma}\,\pi }}-{\frac {h\cos(\alpha)}{\sin(\phi)\pi }}-{\frac {p}{{\it \gamma}\,\pi }}+{\frac {h}{\pi }}=0 (12)

It can be shown that this condition is fulfilled when \alpha = \frac{\pi}{2} . Substituting that value back into Equation (11) gives us the value of z at which point plasticity is first induced, or

z_{{\max}}={\frac {p\cos(\phi)}{\sin(\phi){\it \gamma}\,\pi }}-{\frac{h\cos(\phi)}{\sin(\phi)\pi }}-{\frac {c\cos(\phi)}{\sin(\phi){\it \gamma}}}-1/2\,{\frac {p}{{\it \gamma}}}+{\frac {p\phi}{{\it \gamma}\,\pi }}-1/2\,h-{\frac {h\phi}{\pi }} (13)

If we solve for the pressure p , that pressure will be in reality the critical pressure at which plasticity is first induced. Solving for that pressure,

p_{{{\it cr}}}={\frac {2\,z_{{\max}}\sin(\phi){\it \gamma}\,\pi +2\,h\cos(\phi){\it \gamma}+2\,c\cos(\phi)\pi +\sin(\phi){\it \gamma}\,\pi\,h+2\,h\phi\,\sin(\phi){\it \gamma}}{2\,\cos(\phi)-\sin(\phi)\pi +2\,\phi\,\sin(\phi)}} (14)

At this point we need to face reality and note that, if the point we’re looking for is the point at which plastic deformation begins, then it cannot be at any depth other than the base of the foundation, or z_{max} = 0 . Making that final substitution yields at last

p_{{{\it cr}}}={\frac {2\,h\cos(\phi){\it \gamma}+2\,c\cos(\phi)\pi +\sin(\phi){\it \gamma}\,\pi \,h+2\,h\phi\,\sin(\phi){\it \gamma}}{2\,\cos(\phi)-\sin(\phi)\pi +2\,\phi\,\sin(\phi)}} (15)

Upper Bound

The upper bound solution is a well-worn path in geotechnical engineering and only the highlights will be shown here.

In 1920-1 Prandtl and Reissener solved the problem for a soil by neglecting its own weight, i.e., Equation (6) They determined that the failure pattern and surface can be represented by the following configuration.

Figure 3 Slip Lines and Failure Surface for Upper Bound Bearing Capacity Failure (from Tsytovich (1976))

They determined that the upper bound critical pressure was given by the equation

p_{{{\it cr}}}={\frac {\left (q+c\cot(\phi)\right )\left (1+\sin(\phi)\right ){e^{\pi \,\tan(\phi)}}}{1-\sin(\phi)}}-c\cot(\phi) (16)

If we define

N_{{q}}={\frac {\left (1+\sin(\phi)\right ){e^{\pi \,\tan(\phi)}}}{1-\sin(\phi)}} (17)


p_{{{\it cr}}}=qN_{{q}}+c\cot(\phi)\left (N_{{q}}-1\right ) (18)

If we further define

N_{{c}}=\left (N_{{q}}-1\right )\cot(\phi) (19)

we have

p_{{{\it cr}}}=qN_{{q}}+cN_{{c}} (20)

The only thing missing from this equation is the effect of the weight of the soil bearing on the failure surface at the bottom of the failure region shown in Figure 3, and thus the bearing capacity equation can be written thus:

p_{{{\it cr}}}=qN_{{q}}+cN_{{c}}+1/2\,{\it \gamma}\,bN_{{{\it \gamma}}} (21)


N_{{{\it \gamma}}}=2\,\left (N_{{q}}+1\right )\tan(\phi) (22)

This last bearing capacity factor has been the subject of variable solutions over the years; the one shown here is that of Vesić, which is enshrined in FHWA/AASHTO recommended practice. Verruijt discusses this issue in detail.

Worked Example

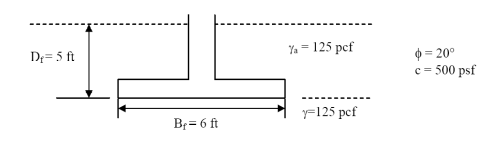

We can take an example from the Soils and Foundations Manual, shown below

It would probably be useful to state the bearing capacity equations in nomenclature that’s more consistent with American practice (and the diagram above.) In both cases this is, for the lower bound solution,

p_{{{\it cr}}}={\frac {2\,D\cos(\phi){\it \gamma}+\sin(\phi){\it \gamma}\,\pi \,D+2\,D\phi\,\sin(\phi){\it \gamma}+2\,c\cos(\phi)\pi }{2\,\cos(\phi)-\sin(\phi)\pi +2\,\phi\,\sin(\phi)}} (15a)

and for the upper bound solution,

p_{{{\it cr}}}=qN_{{q}}+cN_{{c}}+1/2\,{\it \gamma}\,BN_{{{\it \gamma}}} (21a)

One important practical difference between the two is the way the overburden is handled. With the lower bound solution, it is equal to \gamma D , while with the upper bound solution it is simply the pressure q . For a uniform soil above the foundation base with no water table to complicate things, q = \gamma D = (125)(5) = 625\,psf .

Direct substitution into Equation (15a) of all of the variables with show that the lower bound critical pressure is 4740.5 psf.

The upper bound is a little more complicated. The three bearing capacity factors are N_q = 6.4,\,N_c = 14.8,\,and\,N_{\gamma} = 5.39 . Substituting these, q and the other variables yield an upper bound critical pressure of 13,436.8 psf.

If the lower bound is a reduction from the upper bound using a factor of safety, then the FS = 2.83. The lower bound solution is conservative.


Although the lower bound solution may be too conservative for general practice, it is at least an interesting exercise to show the variations in critical pressure from the onset of plastic yielding to its final failed state.
