STADYN Wave Equation Program 8: Modification of Adhesion Properties of Cohesive Soils

With the successful transition of the \xi-\eta soil property system, the time has come to consider how these soils interact with the pile shaft.  As was the case before, the work with the TAMWAVE project has proven helpful with this.

One of the things that makes STADYN more complex than either TAMWAVE or most other 1-D solutions is that soils are not considered as purely cohesive or cohesionless.  In most analysis of driven piles, soils are either on or the other, or at best alternately layered.  In reality the division between the two is not so clear-cut except for either clean sands on the one end or pure clays on the other.  STADYN’s soil system envisions soils as a continuum between one and the other; although this adds to the flexibility of the program (especially in the inverse mode) and its modelling of reality, it makes specifying soils a challenge.

As noted earlier, for soils between the purely cohesionless (\eta = -1 ) and cohesive (\eta = 1 ) interpolation is done so that soils have no cohesion in the former case, no friction in the latter, and are interpolatively mixed in between.  For example, for a middle case of \eta = 0 , the soil would have a reduced cohesion and friction for the same value of \xi and share these properties.  In this way any adjustments for adhesion of either type of soil would be made for each.

Cohesionless soils: there are two ways of looking at this problem.  We can assume a straight-up Coulomb friction failure between the pile and soil, or we can assume that the pile acts as a “direct shear” tester and thus forces the soil to fail at an apparent angle that is not the same as would be predicted by Mohr-Coulomb failure.  As with TAMWAVE, we have assumed the latter; this is explained in some detail here.  It is reasonable to assume that a continuum model such as is used by STADYN could predict such a failure; thus, no modification to the elements closest to the pile surface is done for cohesionless soils.

One thing that did change, however, was the way the lateral earth pressure on the pile was computed.  In an elastic-purely plastic system, lateral earth pressure varies in the elastic region, and with elastic theory that means with the variance of Poisson’s Ratio.  With a Mohr-Coulomb failure criterion, frictional cohesionless soils’ strength is mobilised by vertical effective stress acting laterally.  In recent code iterations Jaky’s Equation has been used to estimate Poisson’s Ratio; however, this has been changed to use the method given by Randolph, Dolwin and Beck (1994).  Once the lateral earth pressure coefficient is computed using this method, Poisson’s Ratio is determined.  At or below the pile toe Jaky’s Equation is used.

Cohesive soils: Mohr-Coulomb theory has no way of taking degradation of cohesion at an adhesion surface into account.  To do this the cohesion for the element(s) immediately adjacent to the pile is reduced by an \alpha factor as computed by the method of Kolk and van der Velde.  This is only done for the element immediately adjacent to the pile shaft surface.  This is the way STADYN does a pile-soil “interface.”  Doing it in this manner obviates the need for special interface elements between the pile and soil.

Implementing this is a little tricky, because the \alpha factor is dependent upon the effective stress.  It is necessary to thus generate the layers, compute the mid-point effective stresses in each, and then apply the factor to the cohesion of one set of elements only.

Results: Finno (1989) and Modello and Killingsworth (2014) Comparisons

The results of these two cases were most recently discussed here.  They can be discussed easily because the results varied little from the previous stage of the program.

For the first case, the Davisson capacity changed from 971 kN to 965 kN and the blow count from 17.6 to 15.8 blows/30 cm.

For the second (inverse) case, the Davisson capacity for the case of |\eta| < 3 the Davisson capacity changed from 269 kN to 274 kN and the blow count from 24.6 to 24.4 blows/30 cm.  The least squares difference actually increased from 0.00143 to 0.00149.

In both cases the soils were heavily cohesionless (at least that’s the way the pile looked at them) and the reduction in adhesion was minimal in impact.

Results: Notional Southeast Asia Case

Of all the test cases in the original study, the notional Southeast Asia case was the most problematic in the results, especially as they were compared to the GRLWEAP output.  The previous phase produced little difference in outcome; it was hoped that applying \alpha factors to the adhesion would at least solve the discrepancies of SRD estimates.  The results did not disappoint.

Since we have not presented too many results from this case, some graphical output is in order.  First, the force-time and velocity*impedance-time curves:

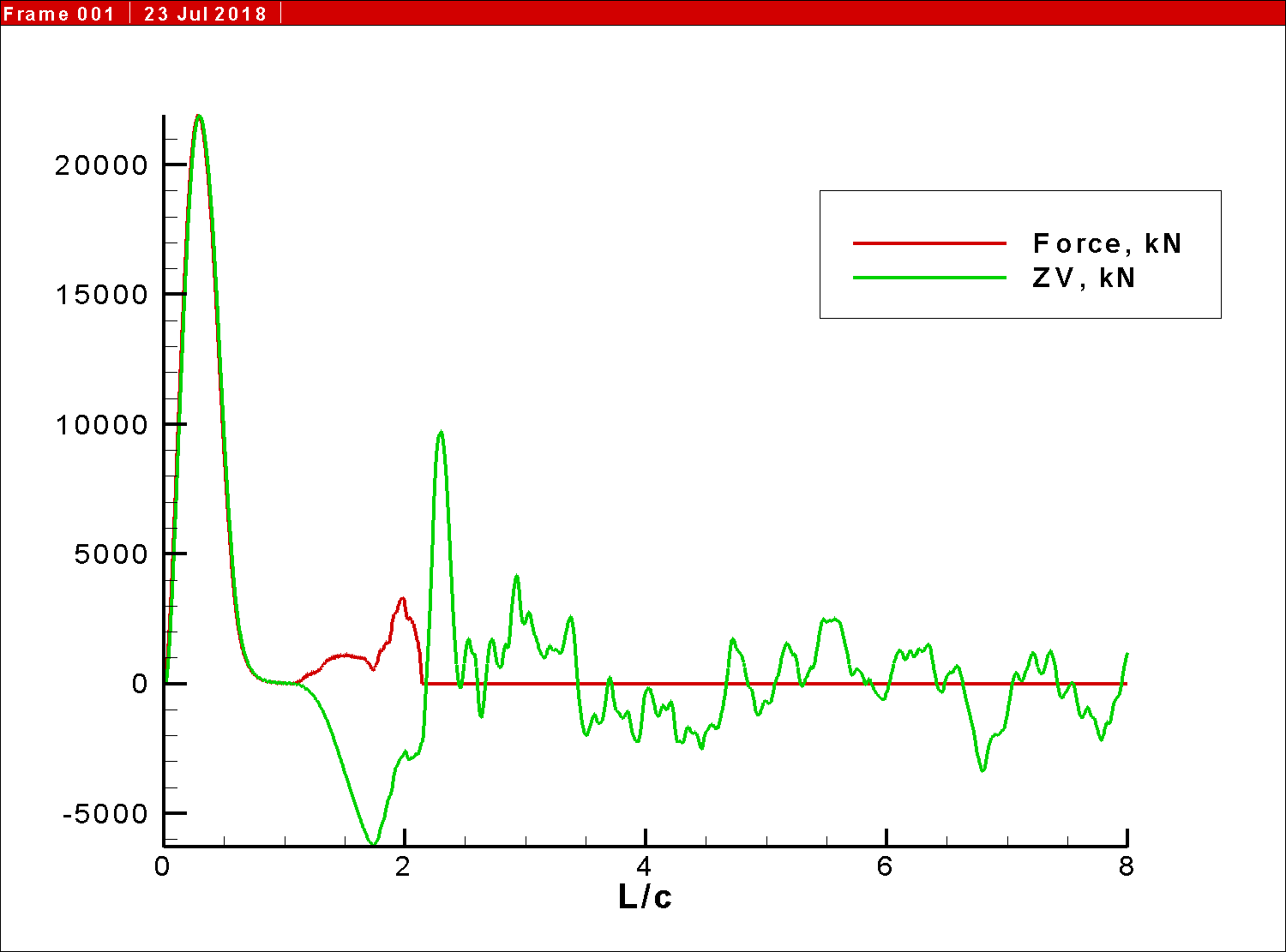

Force and Impedance*Velocity vs. Time Curves

The result above is a classic “offshore” pattern.  In the early part of impact (\frac{L}{c} < 1 ) both the actual pile head force and the product of the impedance are virtually identical.  This indicates an “infinite pile” condition; the theory behind this is discussed by Warrington (1997). Beyond this the two diverge; first the pile head moves upward in rebound from the pile shaft (indicated by the fact that the rebound takes place before \frac{2L}{c} ) and impacts the pile cap, producing a secondary force in the pile head.  Beyond \frac{2L}{c} the pile head force goes to zero and the velocity oscillates with the reflections from the pile; however, just after that time the compressive “kick” from the toe is evident.

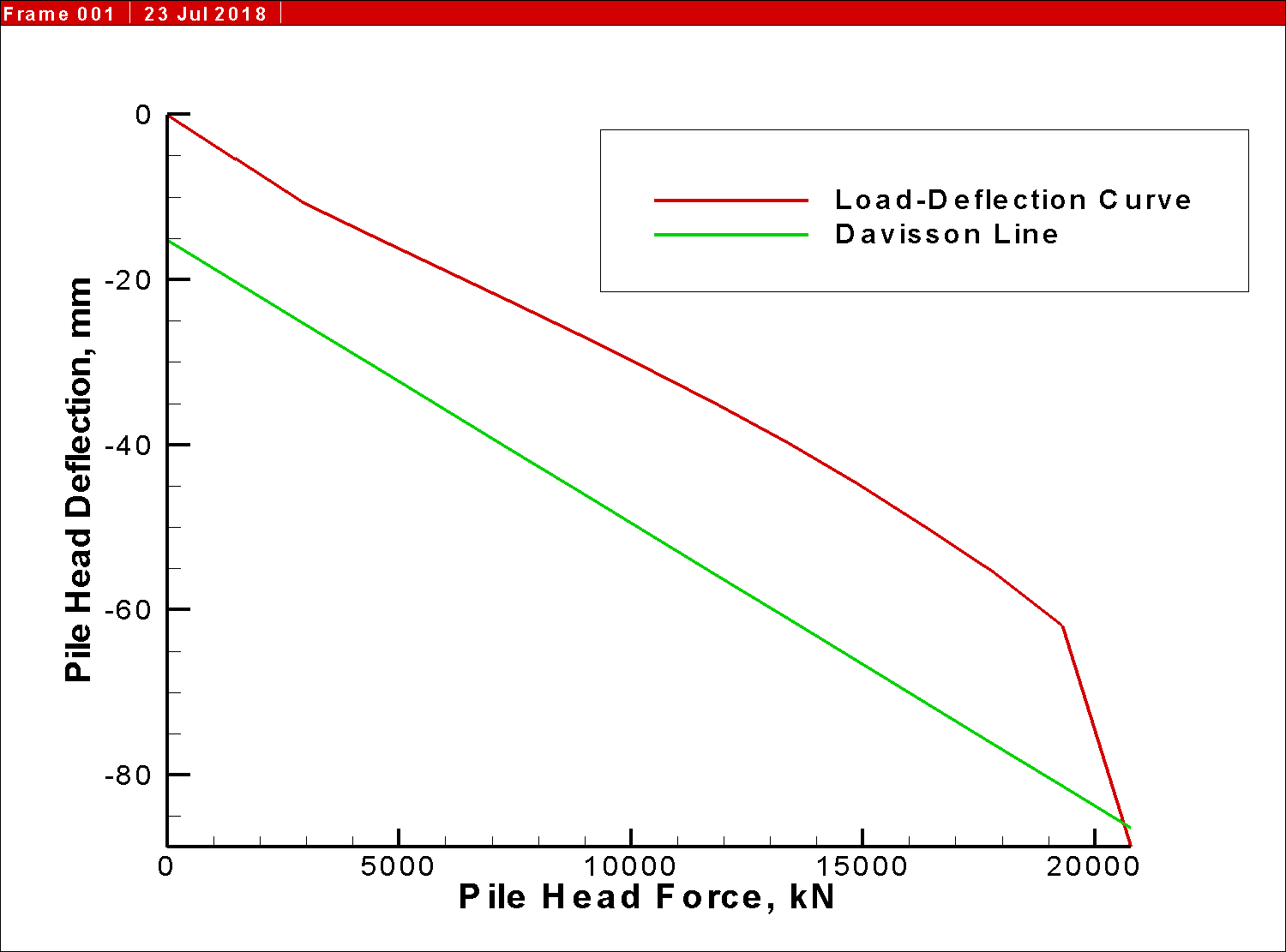

Static Load Test Results

Now we have the result of the static load test.  As noted in the original study, static load tests are exceptional offshore, and for actual loading a tension test is probably of just as much interest (if not more) than a compressive one.  In the original study doubt was also expressed as to the relevance of Davisson’s criterion to offshore piles; the variation among different interpretation methods, however, were not that great.  In any case, the effect of reducing the adhesion of cohesive soils along the surface is evident: the Davisson ultimate load has dropped to 20,600 kN.  This is nearly identical to the Dennis and Olson (1983) method result, and below the API RP2A (2002) result.  This indicates that the application of the \alpha method to the soil elements along the pile shaft results in bringing the static results of STADYN more in line with those of static methods in use.

For the Dennis and Olson (1983) SRD, the GRLWEAP blow count varied from 18.4 blows/30 cm to 21.8 blows/30 cm, depending upon which value of damping was used (0.2 \frac{sec}{m} or 0.3 \frac{sec}{m} .  STADYN returned a blow count of 11.8 blows/30 cm.  This is a significant improvement.  There are two possibilities to explain the remaining difference:

  1. STADYN is modelling a lower effective damping value for the soils than is used in GRLWEAP.  As noted in the original study, STADYN has a different model for handing dissipative phenomena than GRLWEAP.
  2. The two programs have differing methods for arriving at the blow count.

Before we can make more definitive statements about this, we need to include cushion losses, which is our next step.  Nevertheless this result clears up a great deal of the difficulty with this case in the original study.
